Lattice Trimless 10

SKU:
lattice_trimless_10_ac_dimmable
Brand:
Archilight
Unit of Measure:
item
Warranty Period:
5 year
Power Input:
230V AC
Power Rating:
20 W
Dimming Control:
Dimmable
Colour Rendering Index:
90
Driver Included:
Driver Included
Series:
Archilight Lattice Trimless 10 AC Dimmable Series
Material:
Aluminium
Waterproof:
IP20
Standards Met:
CB, CCC, CE, SAA, TUV
Operating Temperature:
-25°C~50°C
Dimensions:
Length:273.5mm | Width:70mm | Height:56.5mm |
Cut-out Size:
rectangle 70x278mm
Mounting:
Recessed
Lifetime:
50000 h
Beam Angle:
15 Degree, 30 Degree, 45 Degree
Finish Colour:
White, Black
LED Colour:
Warm White 2700K, Warm White 3000K, Natural White 4000K, Cool White 5000K

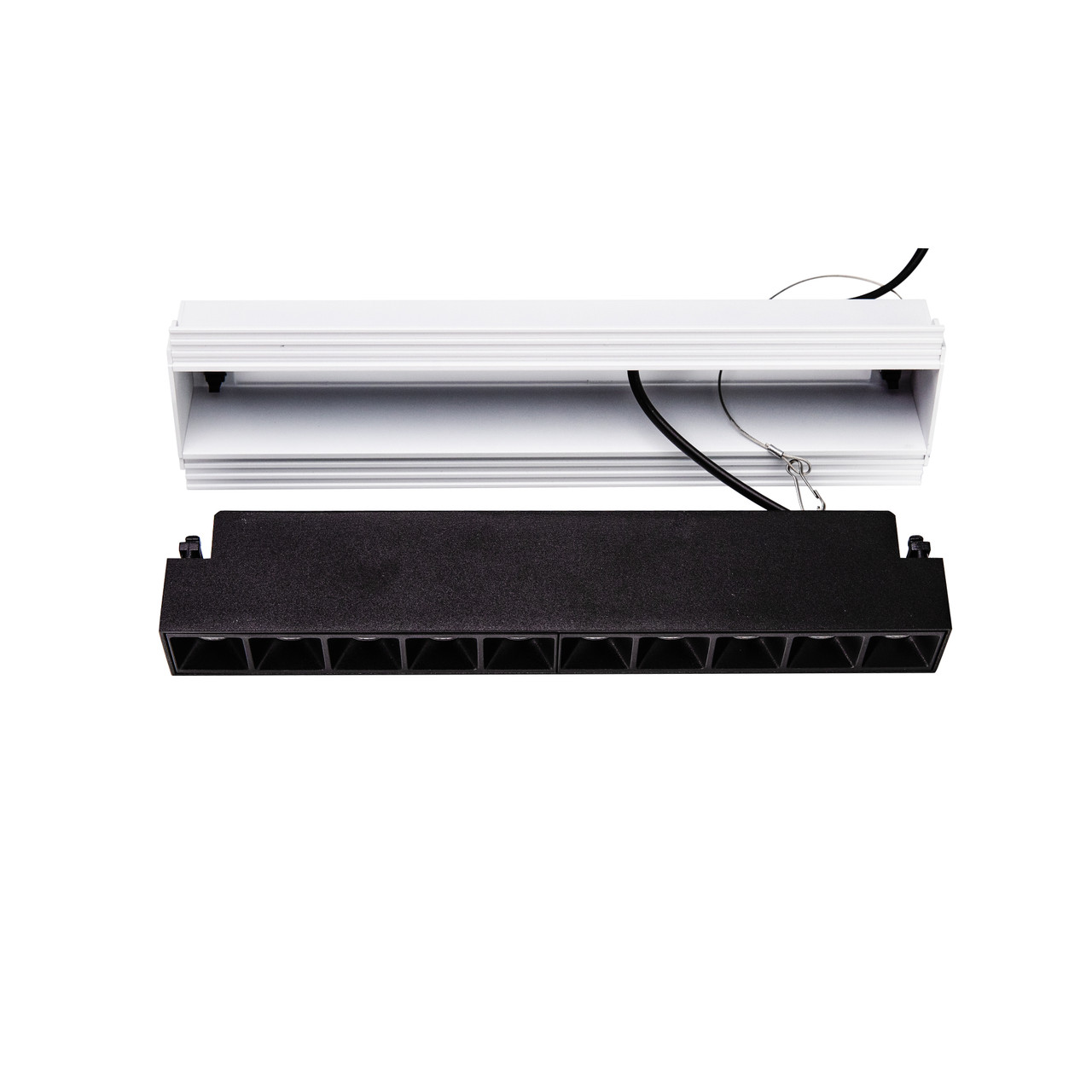

The Lattice series is a stylish, compact, and near-invisible linear downlight series. Its power efficient design with high colour rendering index (CRI>90) and low UGR rating (UGR<19) makes it a top quality light with low glare to provide high visual comfort, whilst displaying the true colours of an area beautifully. With a unique look, the Lattice series is for the modern interior that wants to add that subtle wow factor, without being too extravagant.

? Have Questions? Ask an Expert
Request IES File? Click here
