MICRO Quadro

SKU:
BK-151514211-DL
Brand:
archilight
Unit of Measure:
item
Warranty Period:
5 year
Power Input:
230V AC
Power Rating:
9 W
Dimming Control:
Non Dimmable
Beam Angle:
55 Degree
Colour Rendering Index:
80
Driver Included:
Driver Included
Finish Colour:
White
Series:
Buck Series
Material:
Die-cast aluminium
Waterproof:
IP20
Standards Met:
CE, SAA
Brightness:
785 lm
LED Colour:
Natural White 4000K
Mounting:
Recessed
Lifetime:
50000 h
Operating Temperature:
-15°C~50°C
Dimensions:
Length:114mm | Width:114mm | Height:46mm |
Cut-out Size:
108mm

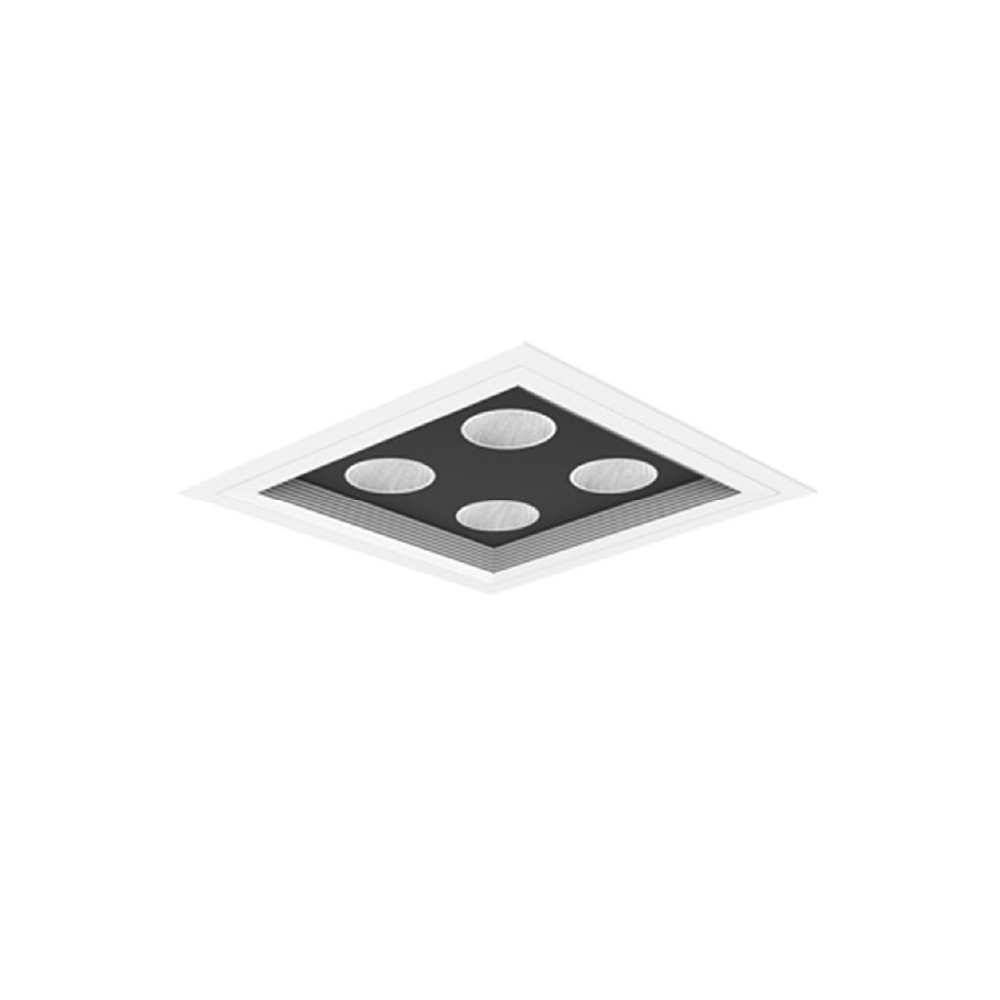

GENERAL Minimal dimensions and supreme visual comfort together with high optical and energy efficiency make this recessed downlighter ideal for accent illumination.

OPTICS Multispot downlighter reflectors with complex surfaces geometry of micro facets allow precise shaping of light beam. Angles of direct light beam and light reflected from reflector are almost perfectly aligned, providing sharp cut off for full visual comfort.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.

HOUSING Housing is made of aluminium with visible frame. Finish: epoxy polyester powder coating. Fine structured texture. Standard colours: white, gray, black, other colours available upon request.

APPLICATION Applicable to all types of suspended ceilings that can be cut through.

ADDITIONAL Dynamic White and other light colour temperatures available upon request.
